Key Features
- Gauge Size:Range: 0-15 psi,Thread Type: 1/8" NPT,Dial size: 1-1/2",Gauge Body size(Outermost diameter):1.87",Gauge Body height(Including threads):1.79",Working temperature: -4 to 140 deg F/-20 to 60 deg C

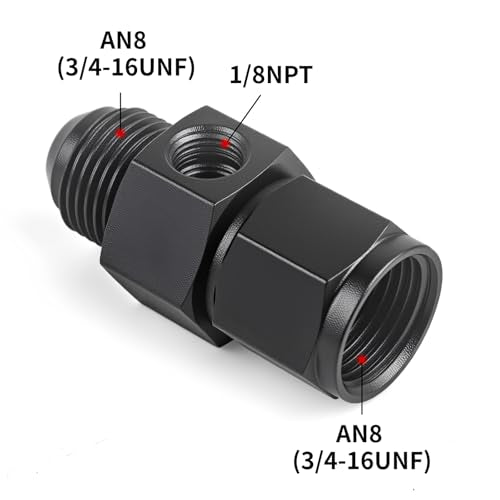

- Adapter Size: 8AN Male Flare to -8 Female with 1/8" NPT gauge Port,the thread size of the 8AN is 3/4-16UNF

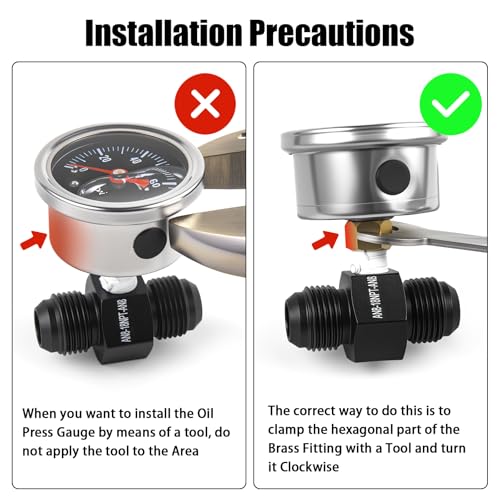

- Sealing:The AN thread of the flare is sealed by a 37 degree angle and the NPT is sealed with a 60 degree tapered.It is highly recommended to use sealant or PTFE (polytetrafluoroethylene tape) at the NPT port.The Liquid filled keeps the needle steady and lubricates the movement to extends the life of gauge
- Material: Stainless steel case, brass wetted parts, glycerin filled, aluminum Fuel Pressure Gauge Fitting Adapter
- Quality Service:When You Encounter Any Questions About The Product, You Can Contact Me As Soon As Possible, And I Will Answer It For You
Specifications
| Brand | CNRAQR |
| Manufacturer | CNRAQR |
| Material | Stainless Steel |
| Color | 0-15Psi |
| Size | 0-15Psi |
| Product Type | ELECTROMECHANICAL_GAUGE |
| Item Type Keyword | automotive-instrument-panel-fuel-pressure-gauges |
| Package Dimensions | H: 50 / L: 60 / W: 50 (Weight: 118) |
| unit |
Description
Features:

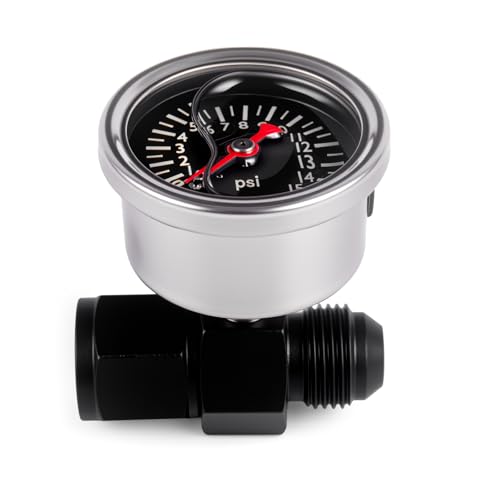

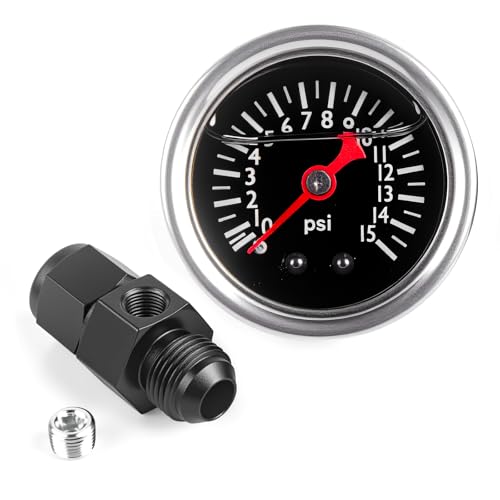

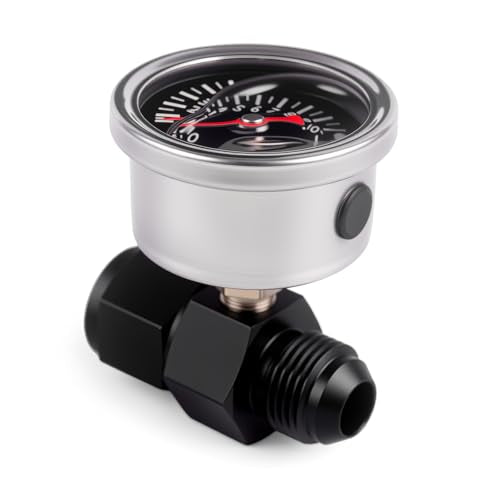

Fuel Pressure Gauge
Range: 0-15 psi
Thread Type: 1/8" NPT
Dial size: 1-1/2"

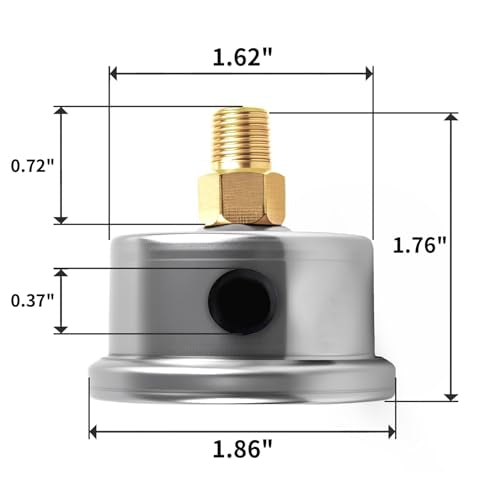

Gauge Body size(Outermost diameter):1.87"
Gauge Body height(Including threads):1.79"
Working temperature: -4 to 140 deg F/-20 to 60 deg C
Liquid FILLED keeps the needle steady, which is extremely critical during engine operation.
Fuel Pressure Gauge Fitting Adapter
8AN Male Flare to -8 Female with 1/8" NPT gauge Port,the thread size of the 8AN is 3/4-16UNF.
Sealing: The AN thread of the flare is sealed by a 37 degree angle and the NPT is sealed with a 60 degree tapered.It is highly recommended to use sealant or PTFE (polytetrafluoroethylene tape) at the NPT port.
Material：Made of 6061-T6 aluminium alloy.
Scope of Application:Widely used in fuel system to add a fuel pressure gauge or sensor between fuel lines.
